Technical Data
Capacity | 300 kg |
Graduation | 50 g < 150 kg > 100 g |
Power supply | Power adapter |
Net weight | 4.6 sts 29.0 kg |
Options | with handrail and ultrasonic height measurement |
Interfaces | Ethernet USB bar code scanner Wi-Fi |
Product width | 801 mm |
Product height | 2,387 mm |
Product depth | 650 mm |
Platform width | 600 mm |
Platform height | 70 mm |
Platform depth | 467 mm |
Measuring range | 100 - 220 cm |
Measuring range with attached handrail | 100 - 220 cm |
Graduation measuring range | 1 mm |
Functions
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- Automatic weighing range switch-over
- Adjustable damping
- Auto-BMI
- Auto-BSA (Body surface area)
- Mother+child function
- Standby mode
- SEND / Auto-SEND
- Confirm button
- Acoustic signals can be activated
- Wi-Fi
- Ethernet
- Customizable shortcut buttons
- Backlighting
Reviews
Seca 655-HR-US Hand-Rail Scale with Ultrasonic Height Measure
Seca 655-HR-US Hand-Rail Scale with Ultrasonic Height Measure
Product Code: SECA655HRUS
Direct from Supplier Ships direct from the supplier for delivery within 10 working days.

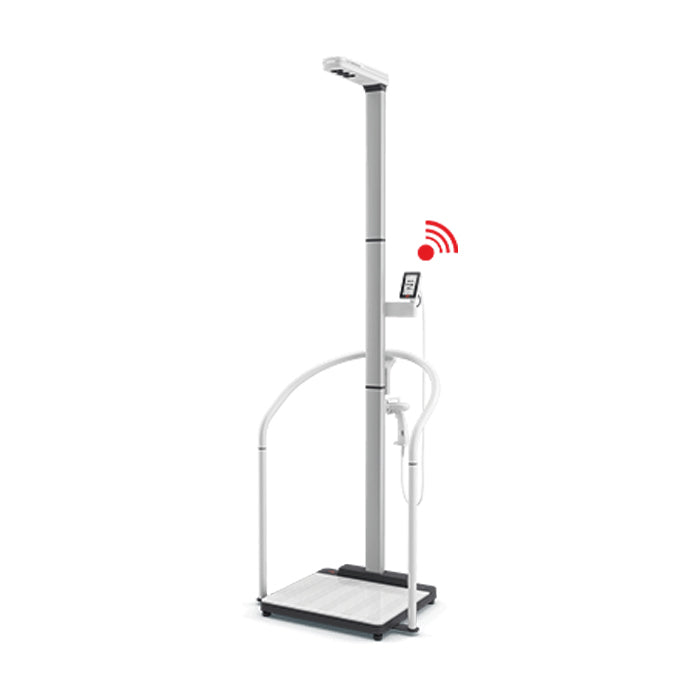

The seca 655-HR-US Hand-Rail Scale with Ultrasonic Height Measure incorporates a Seca 655 Flat Scale and the Seca 455 Steel Handrail to create a safe, stable and reliable weighing and height measuring system.
Constructed with a large, durable platform that can hold up to 300kg in weight, a steel handrail for optimum stability and ultrasonic height measurement technology, this measurement system is ideal for use in hospitals and GP surgeries.
What’s included?
- Seca 655 Flat Scale
- Seca 455 Handrail
- Seca 257 Ultrasonic Measuring Rod
- Drip Guard
- Multifunctional Display
- Display Cable
- Network Cable
- Power Supply Unit with Adaptor
- Set of Instructions
The 655-HR-US allows you to connect to digital records wirelessly or via an Ethernet connection. Easily identify patients and send measurement information directly to your EMR system to limit human error, the software guarantees a safe and secure transfer of data.
How does ultrasonic measuring technology work?
3 pairs of sensors emit sound waves at a frequency too high for the human ear, the sensors then wait for the sound to be reflected back, calculating the distance based on the time required. This allows you to accurately measure patients height without needing to make physical contact. Results are available in a matter of seconds.
Key Features & Benefits

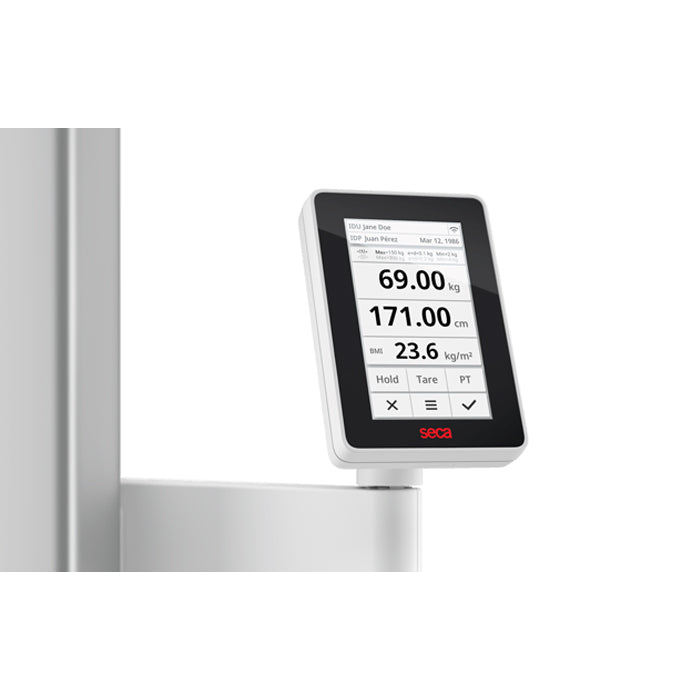

- Display shows user and patient names or IDs for increased patient safety
- Outstanding precision and high-speed measuring thanks to perfected ultrasound technology

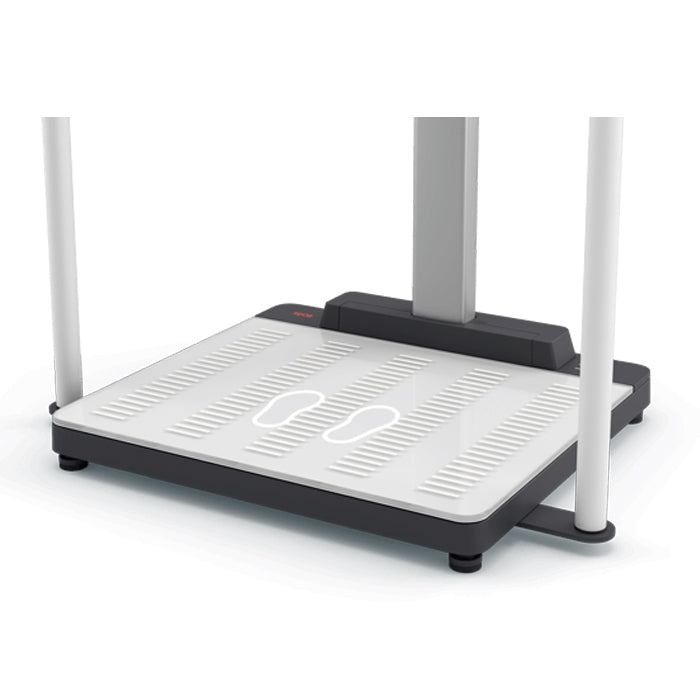

- Large platform made of tested seca Bearclaw Glass® for absolute breakage resistance and perfect hygiene
- Illuminated LED footprints in the weighing platform show patients the correct standing position for accurate height measurement
- Voice guidance to support the measurement process
- Safe weighing with a stable handrail
- Optional panda bear facilitates measuring and weighing of children
- EMR-validated: transmit measured data directly to an electronic medical record system or printer
Technical Data
Capacity | 300 kg |
Graduation | 50 g < 150 kg > 100 g |
Power supply | Power adapter |
Net weight | 4.6 sts 29.0 kg |
Options | with handrail and ultrasonic height measurement |
Interfaces | Ethernet USB bar code scanner Wi-Fi |
Product width | 801 mm |
Product height | 2,387 mm |
Product depth | 650 mm |
Platform width | 600 mm |
Platform height | 70 mm |
Platform depth | 467 mm |
Measuring range | 100 - 220 cm |
Measuring range with attached handrail | 100 - 220 cm |
Graduation measuring range | 1 mm |
Functions
- Display of user and patient name or ID
- Display date of birth patient
- TARE
- Pre-TARE
- HOLD
- Auto-HOLD
- CLEAR
- Auto-CLEAR
- RESET
- Automatic weighing range switch-over
- Adjustable damping
- Auto-BMI
- Auto-BSA (Body surface area)
- Mother+child function
- Standby mode
- SEND / Auto-SEND
- Confirm button
- Acoustic signals can be activated
- Wi-Fi
- Ethernet
- Customizable shortcut buttons
- Backlighting
