Dimensions & Specifications

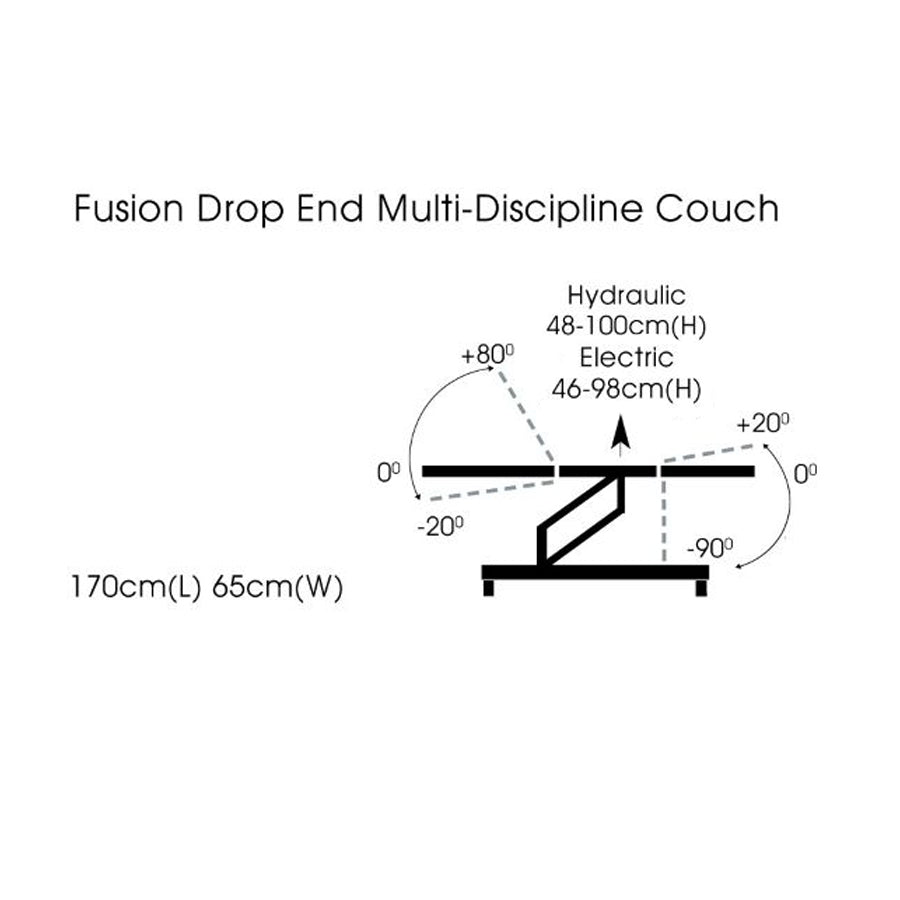

- Overall dimensions: 170cm (L) x 65cm (W) x 46–100cm (H)
- Maximum user weight: 250kg (40st)
- Head/Back rest angle adjustment: +80º to -20º
- Foot section adjustment: +20º to -90º
- Retractable 50mm positioning castors with adjustable height levelling foot
- Hoist clearance: 12.5cm
- CE marked
Upholstery Compliance
- BS 5790, ISO 7617 Anex D compliant
- Flame retardant to BS 7176:2007 + A1:2011 Medium Hazard
- BS EN 1021-1:2006 (smouldering cigarette) & BS EN 1021-2:2006 (match flame equivalent)
- BS 5852:2006 Clause 11, Ignition Source 5
- FAR/JAR Part 25:App. F part 1 (Vertical Test) / EASA CS.25.853
- IMO Resolution MSC 307(88) (2010 FTP Code: Annex 1: Part 8)
Cleaning & Maintenance
For long-lasting appearance and performance, clean regularly using mild soapy water and a soft brush or microfibre cloth. Avoid harsh chemicals. The antimicrobial properties are built into the vinyl during manufacturing, ensuring continued effectiveness even after frequent cleaning. The material also resists mould and mildew growth, helping prevent odours.
Warranty Information
We’re committed to providing durable, high-quality equipment that meets the needs of clinical and professional environments. That’s why the Fusion Drop End Exam Couch comes with a comprehensive warranty for added peace of mind.
- 5-Year Warranty: Covers all mechanical parts against defects in materials or workmanship from the date of delivery.
- 15-Year Frame Guarantee: For the variable-height, fully welded couch frame only.
- 12-Month Warranty: Applies to some components.
For customers in non-mainland UK and Highlands locations (including Ireland and international orders), the warranty is limited to the supply of replacement parts only. Labour or service costs may be chargeable.
For further information, please refer to the manufacturer's T&Cs.
Optional Extra Details
Leg Supports
Pair of adjustable leg supports with mounting brackets for reliable positioning during procedures.
- Multi-position adjustment
- Secure bracket fixings
- Wipe-clean surfaces
- Supplied as pair with brackets
- Factory-fit accessory - not sold separately
Padded Arm Supports
Pair of arm supports with mounting brackets offers comfortable support during treatments or examinations.
- Secure bracket fixings
- Wipe-clean surfaces
- Supplied as pair with brackets
- Factory-fit accessory - not sold separately
Folding Side Rails
Pair of metal folding side rails to help ensure patients are secure when on the bed. They can be lowered to enable easy mounting & dismounting.
- Securely fitted to the couch frame
- Wipe-clean surface
- Supplied as a pair
- Factory-fit accessory - not sold separately
Phlebotomy Arm
Pair of adjustable arm supports with durable frame and easy-clean holder.
- Strong metal frame
- Easy-clean black arm cradle holder
- Adjustable for patient comfort
- 49cm (H) x 35cm (L) x 12cm (D)
- Factory-fit accessory - not sold separately
Foot Switch
Hands-free foot control for electric couch height adjustment.
- Replaces hand-held remote
- Hands-free height adjustment
- Electric lift models only
- Factory-fit accessory - not sold separately
Gynae Stirrups
Durable stirrups with shaped heel and foot supports for secure positioning in gynaecological procedures.
- Strong metal stirrup arms
- Triangular foot and heel supports
- Clamp with quick height and angle adjustment
- Supplied as a pair
- Factory-fit accessory - not sold separately
Reviews

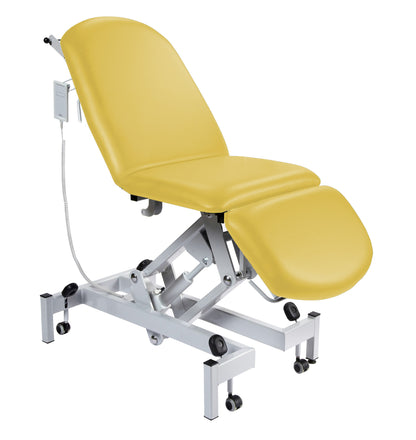

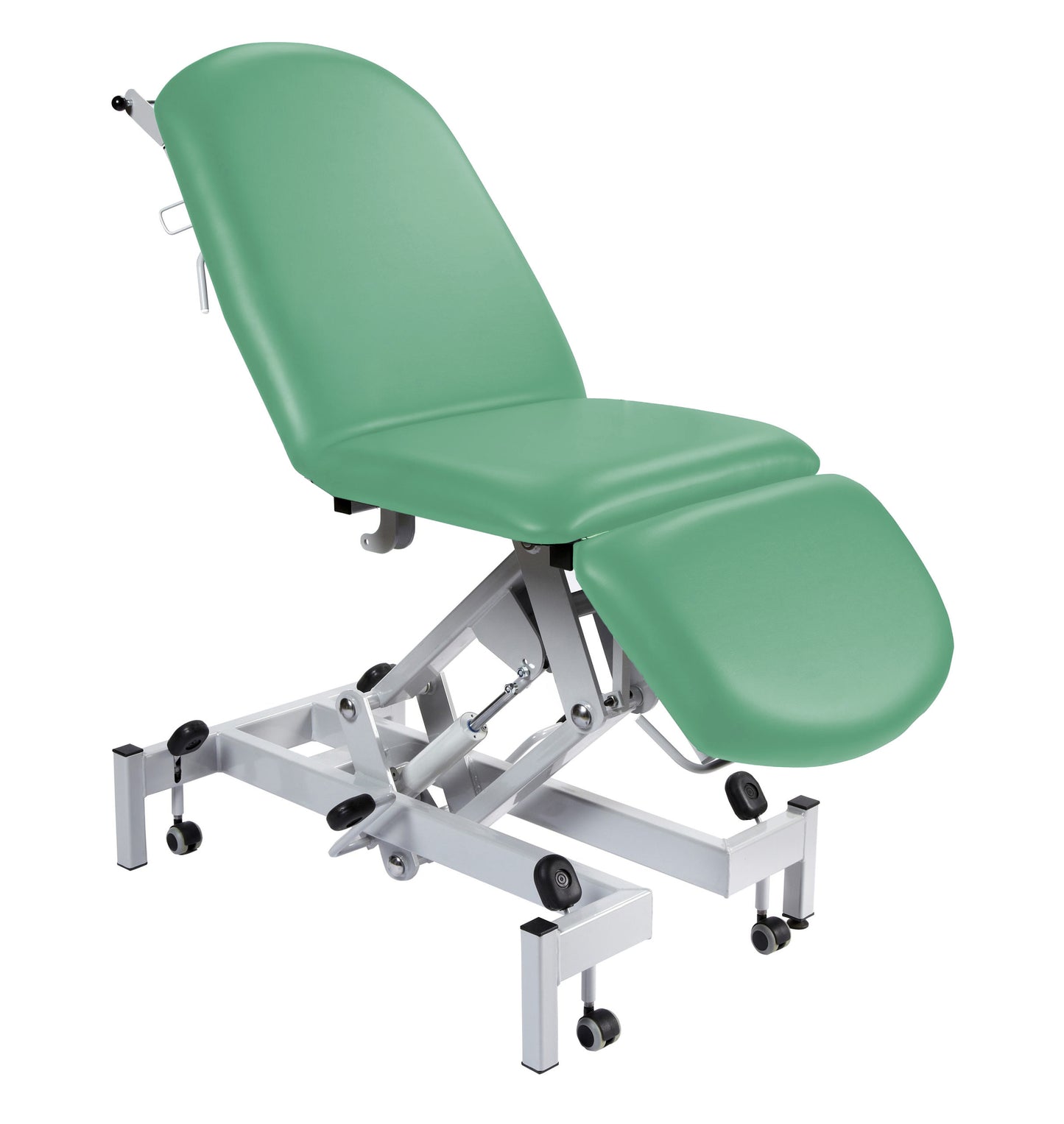

Fusion Drop End Multi-Discipline Examination Couch
Fusion Drop End Multi-Discipline Examination Couch
Product Code: COUC020H
MPN:
SUN-FDECH1-Apple
This item comes with up to 15 years manufacturer warranty
Direct from Supplier Ships direct from the supplier for delivery within 28 working days.

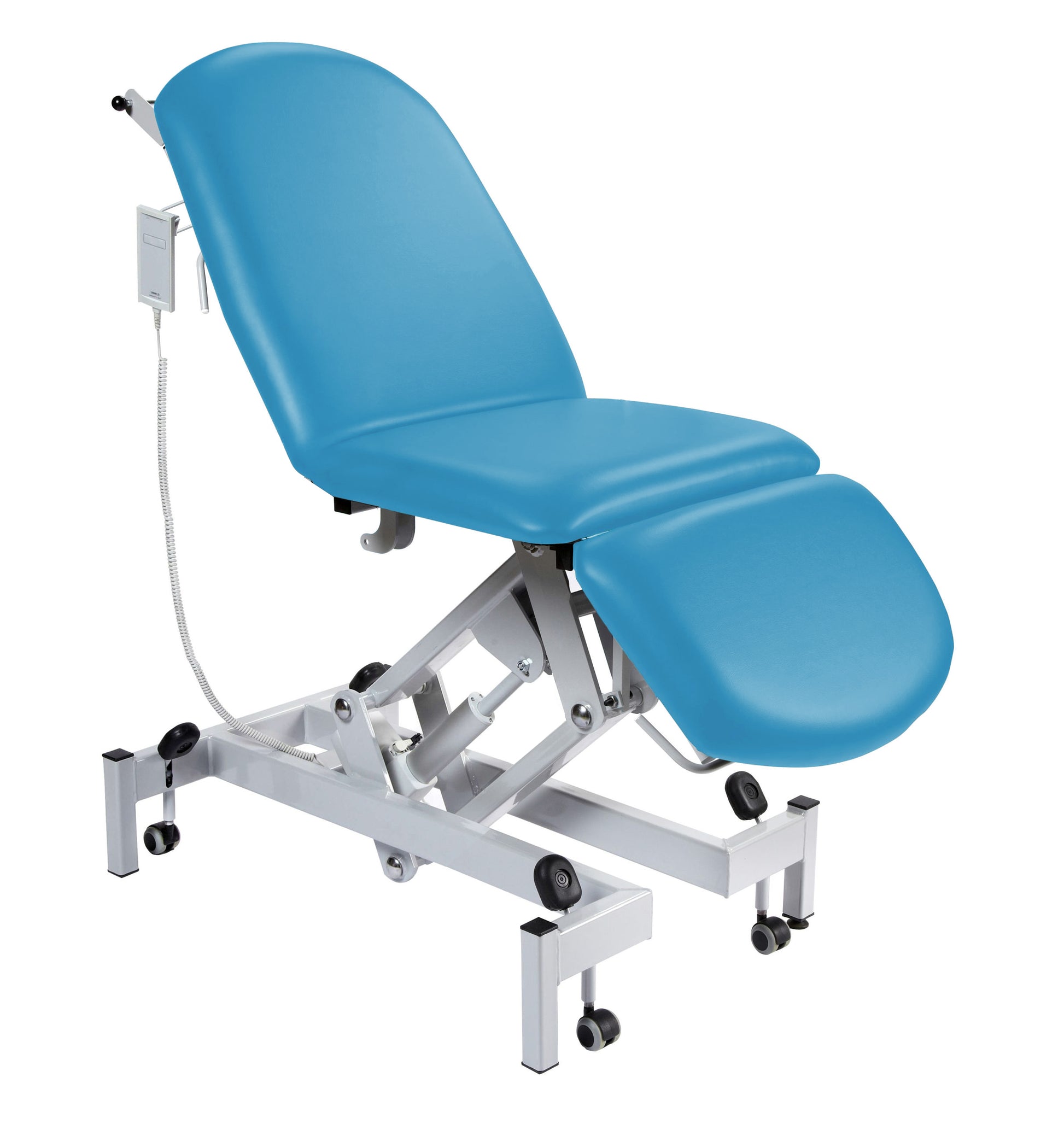

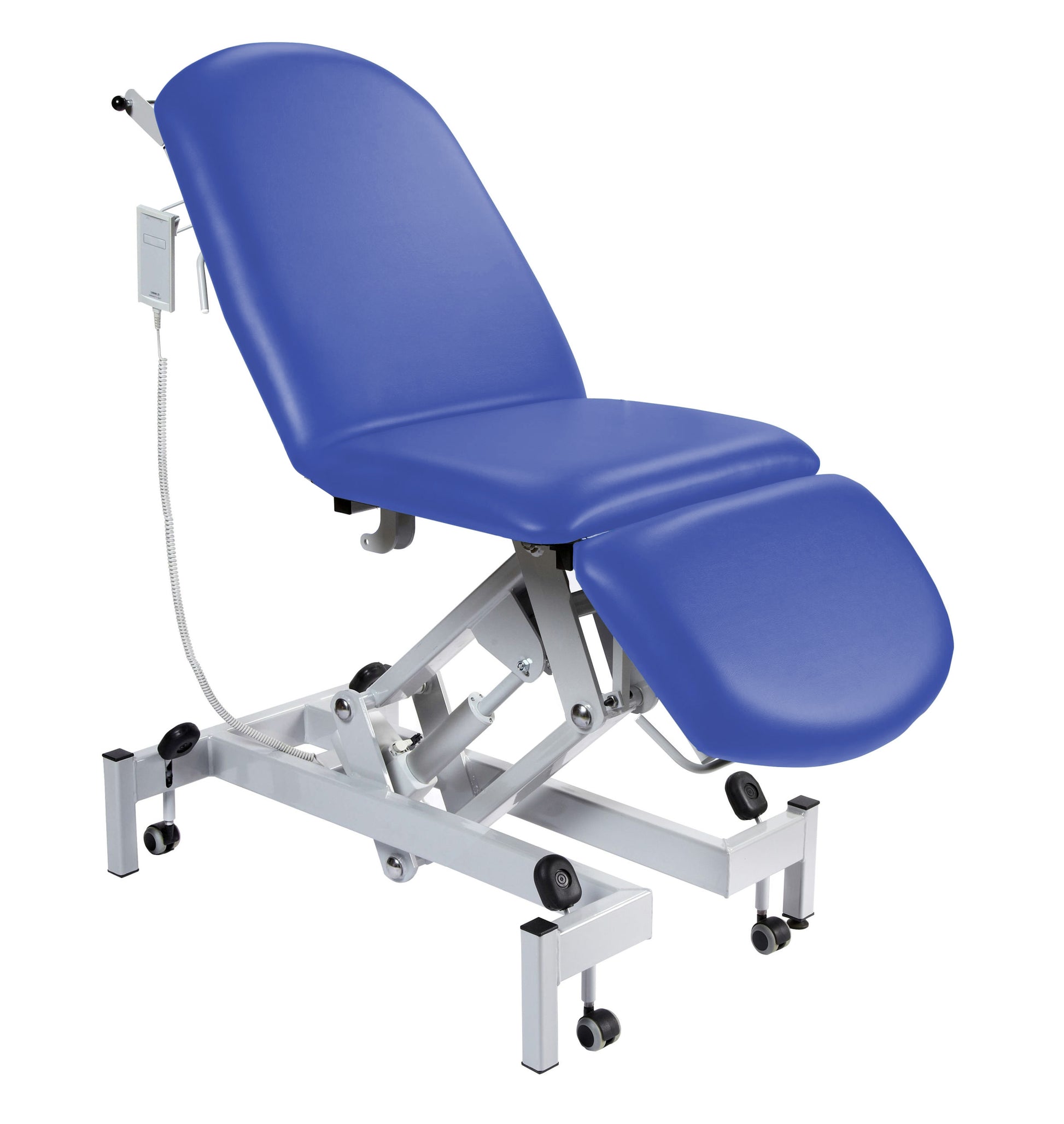

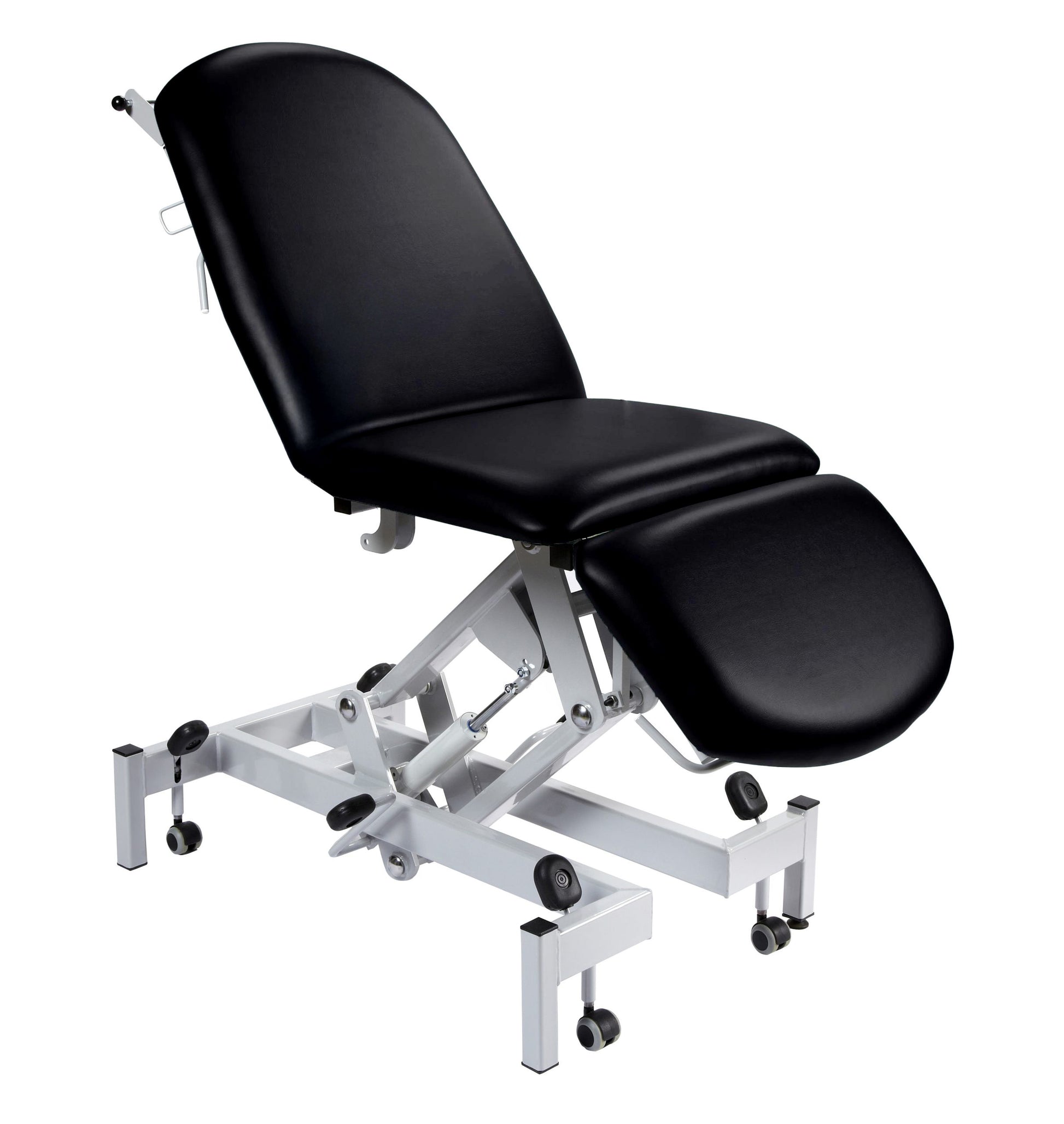

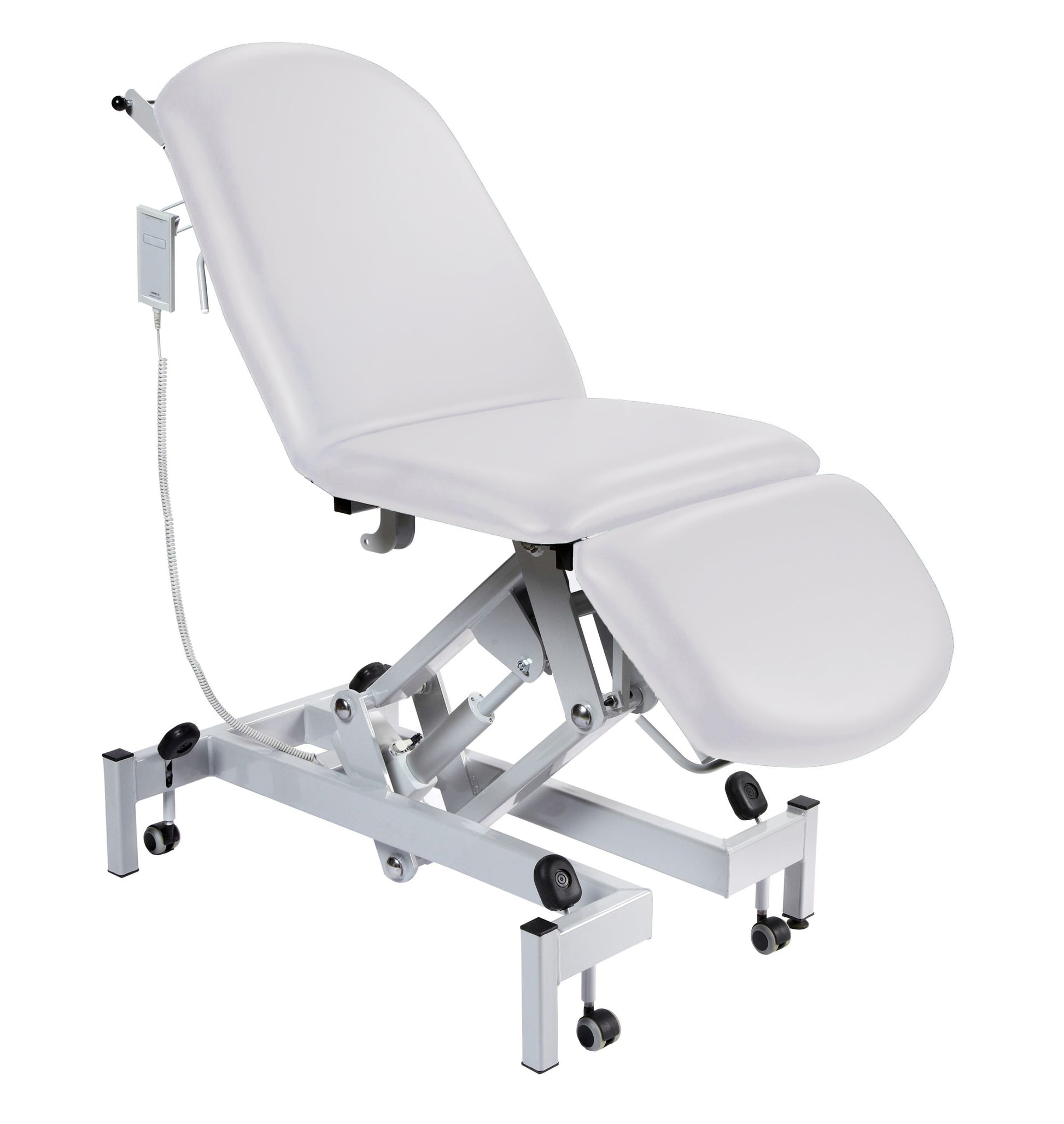

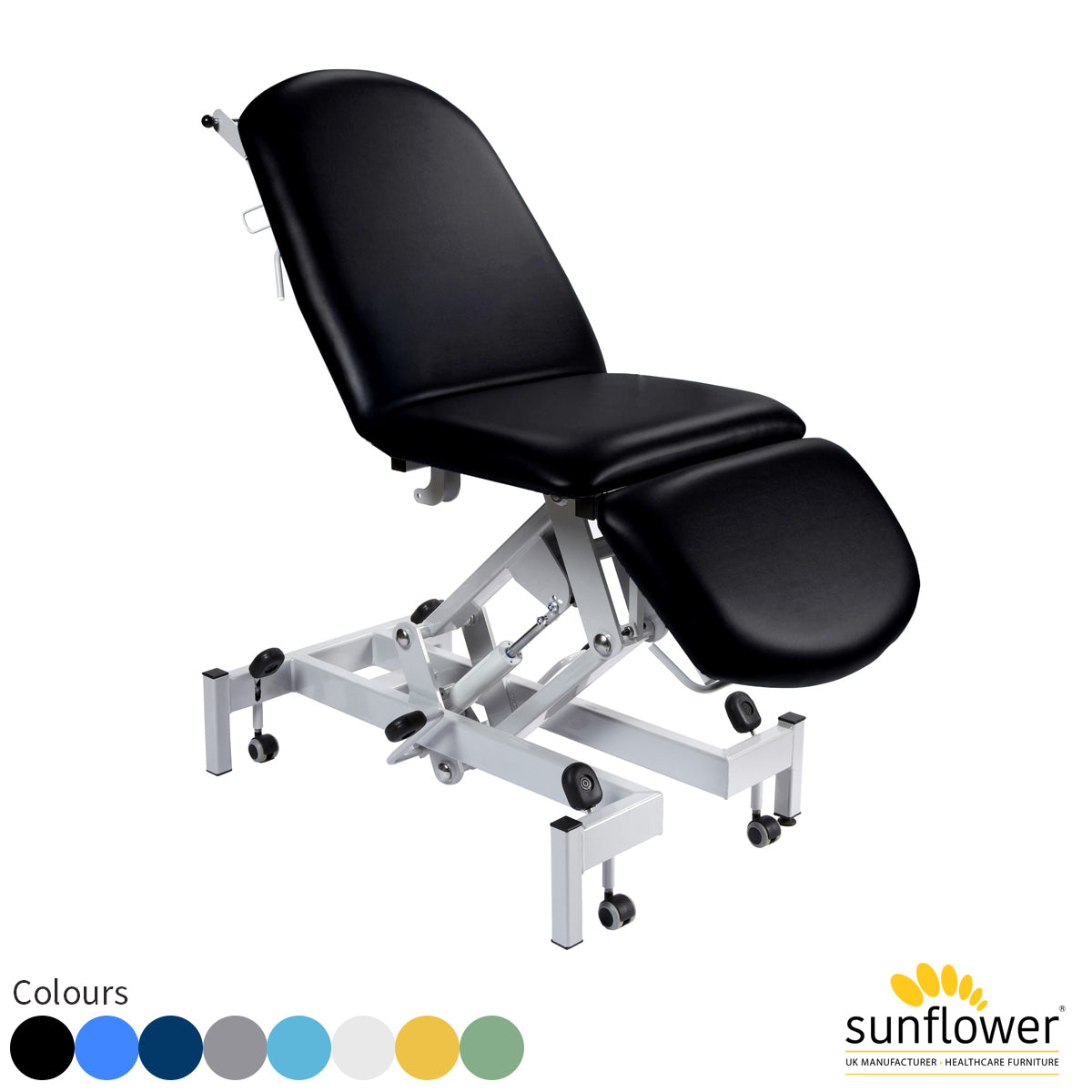

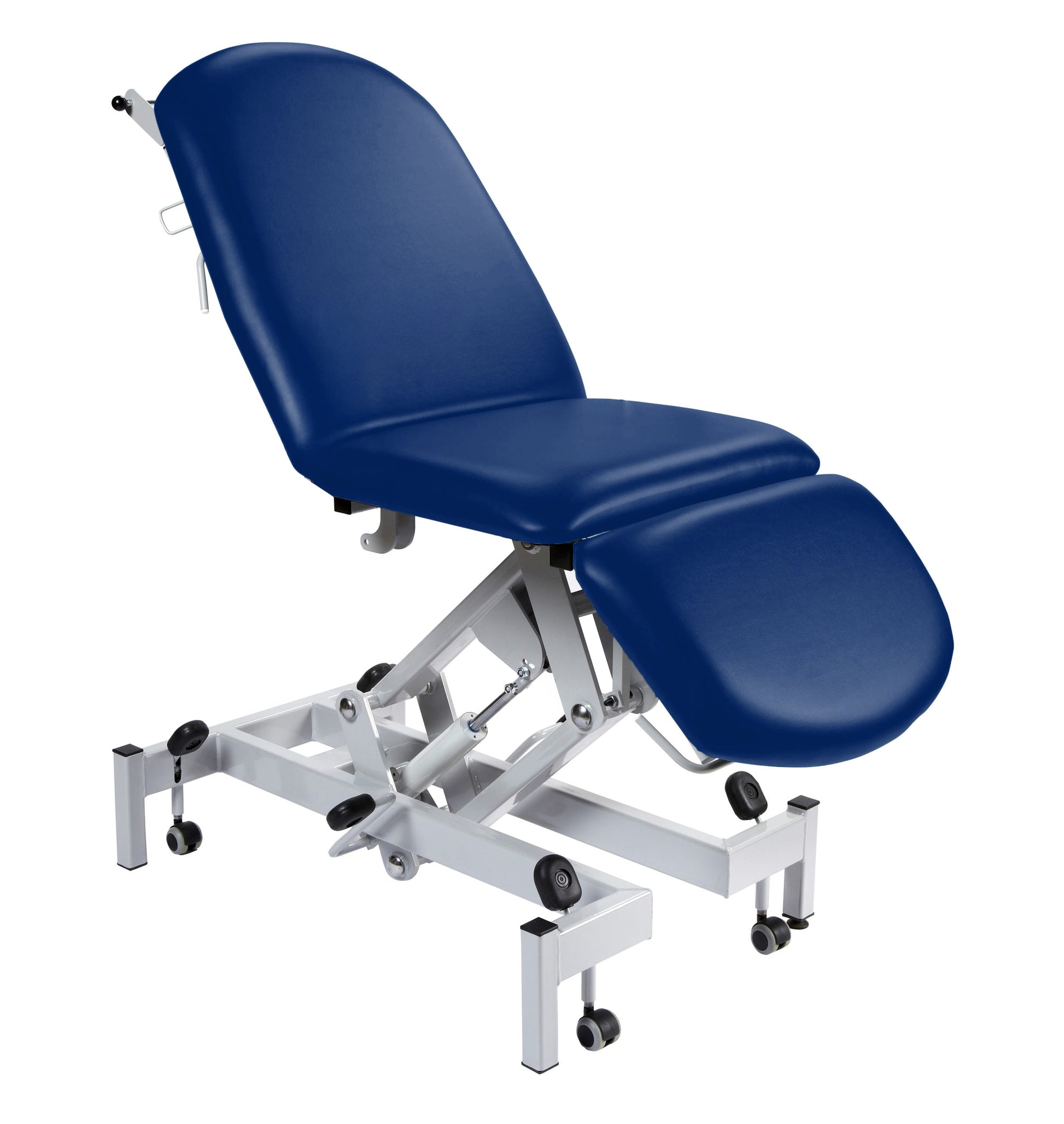

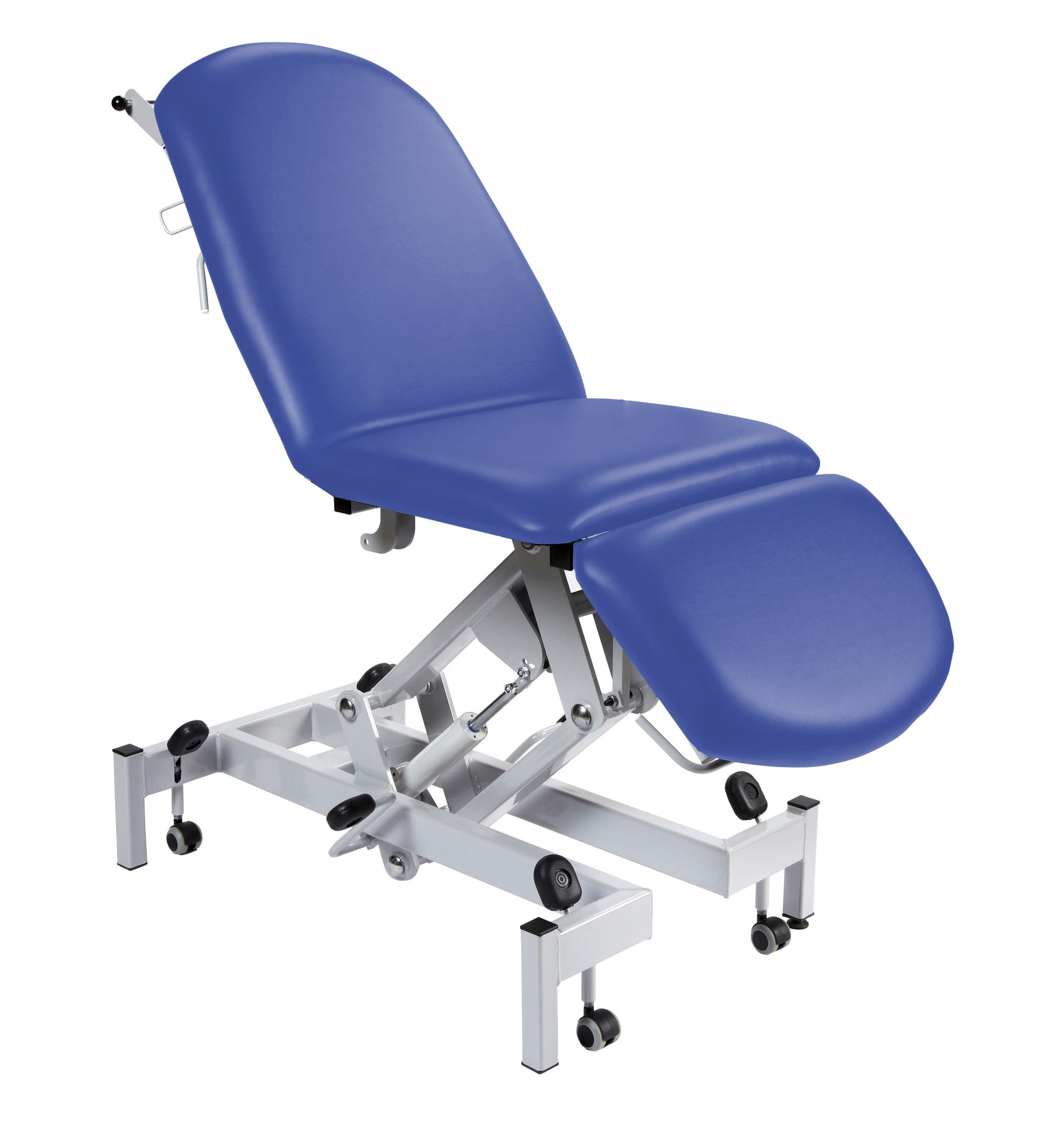

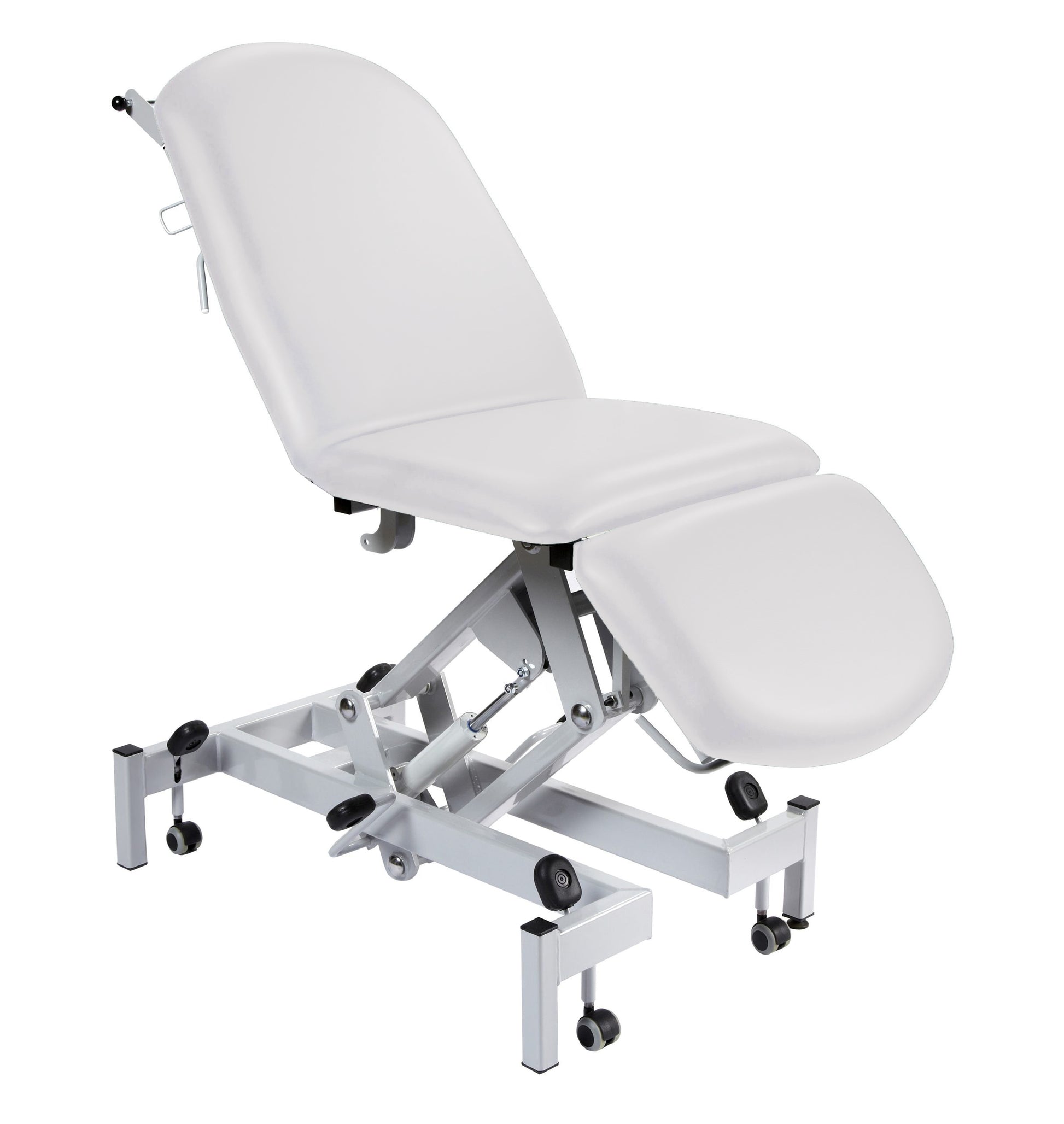

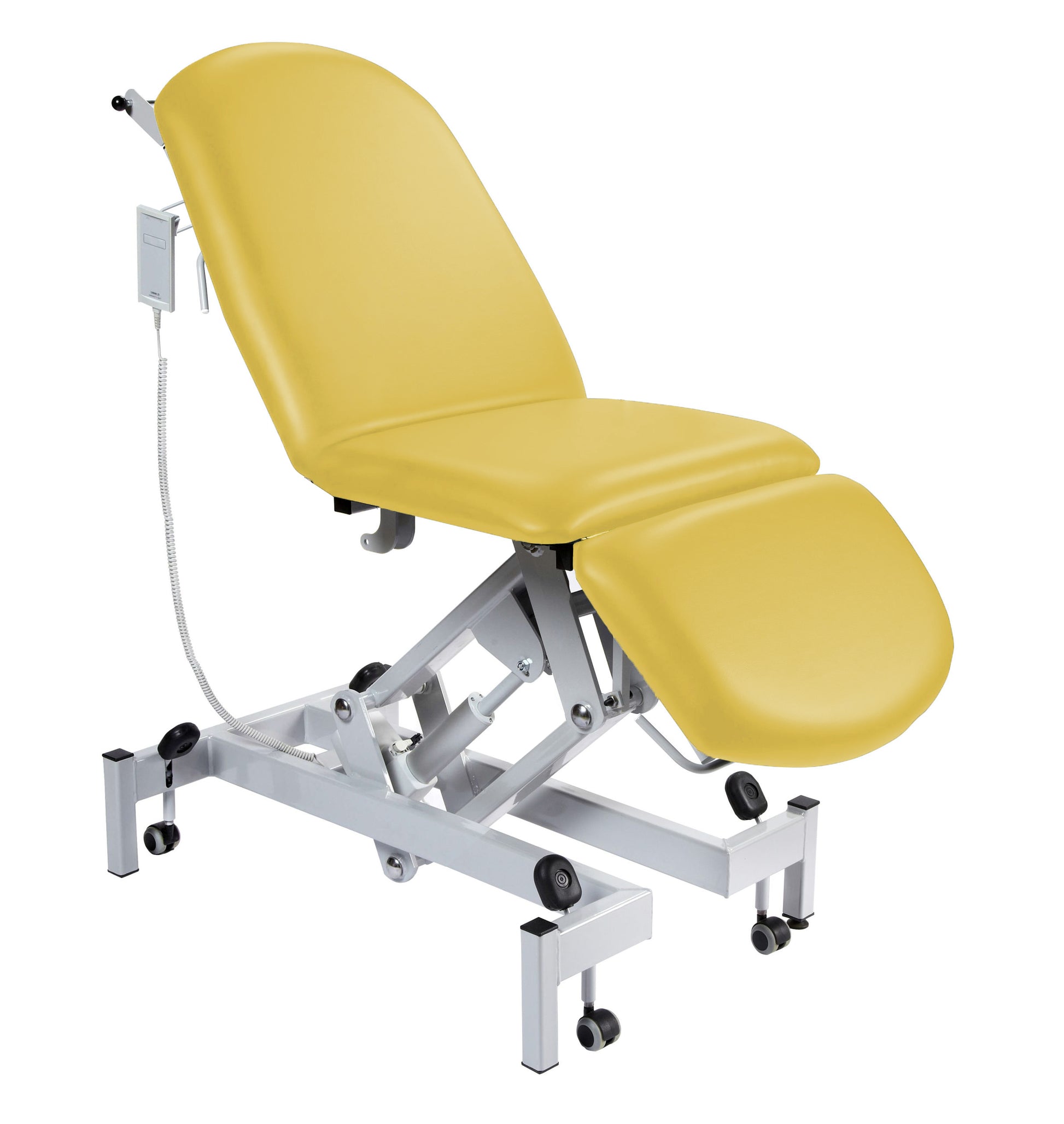

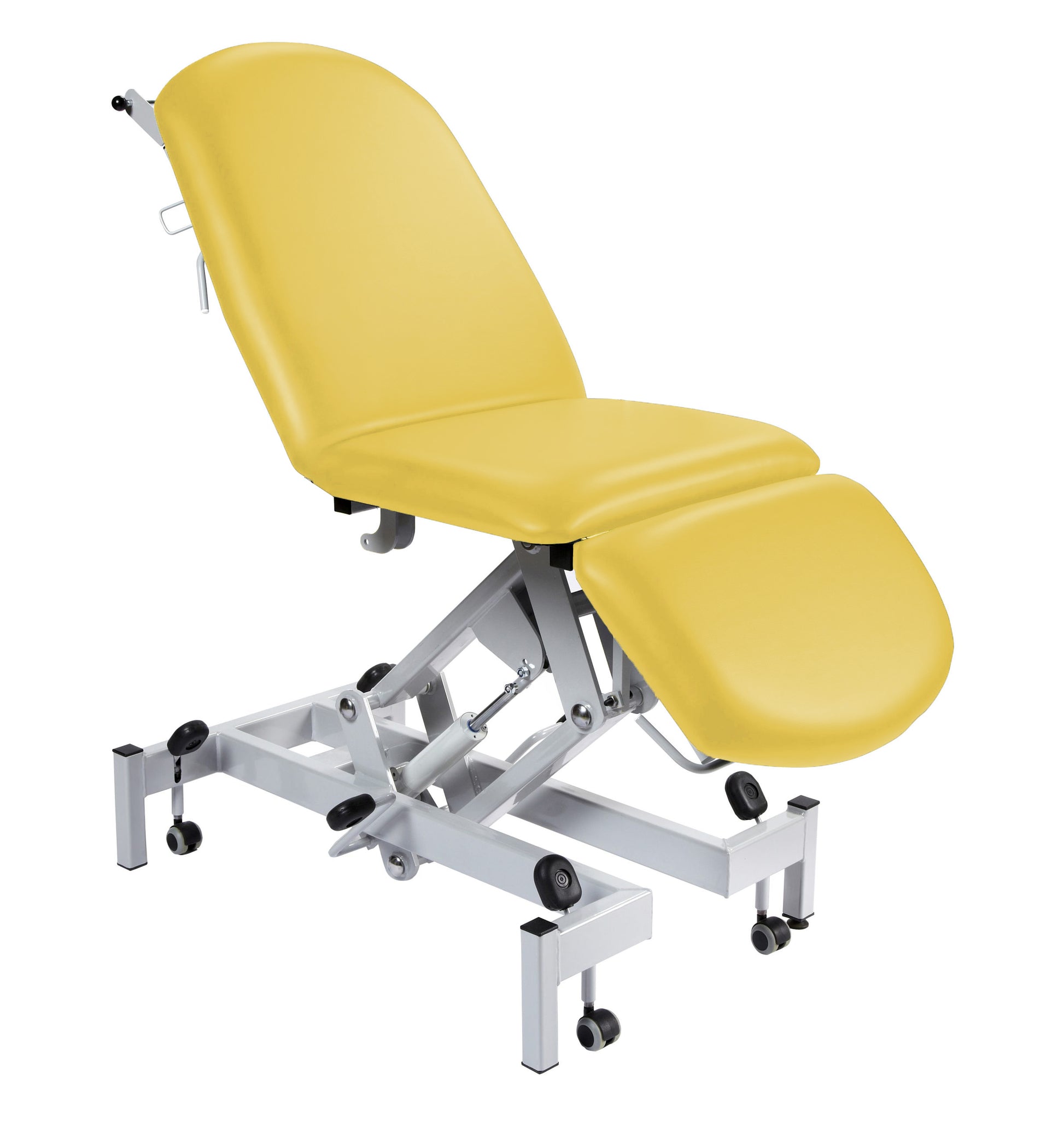

The Fusion Drop End Multi-Discipline Examination Couch is designed with input from healthcare professionals to deliver a reliable, ergonomic, and versatile treatment platform. Built to support a wide range of clinical procedures, it can be adapted for physiotherapy, gynaecology, phlebotomy, or general examinations. With robust construction, easy-clean surfaces, and a choice of manual or electric adjustments, this couch provides long-lasting performance in demanding healthcare environments.
Key Benefits & Features
- Strong and supportive design with a maximum user weight of 250kg (40 stone).
- Fitted with 50mm retracting braked castors for stability and smooth movement.
- Hoist clearance of 125mm (5 inches) to support safe patient transfer.
- Integrated gussets between couch sections for improved infection control and easy cleaning.
- Includes paper couch roll holder as standard for added convenience.
- Head/back section adjustment: +80º to -20º; foot section adjustment: +20º to -90º.
- 65mm deep contoured upholstery designed for patient comfort and durability.
Dimensions & Specifications
- Overall dimensions: 170cm (L) x 65cm (W) x 46–100cm (H)
- Maximum user weight: 250kg (40st)
- Head/Back rest angle adjustment: +80º to -20º
- Foot section adjustment: +20º to -90º
- Retractable 50mm positioning castors with adjustable height levelling foot
- Hoist clearance: 12.5cm
- CE marked
Upholstery Compliance
- BS 5790, ISO 7617 Anex D compliant
- Flame retardant to BS 7176:2007 + A1:2011 Medium Hazard
- BS EN 1021-1:2006 (smouldering cigarette) & BS EN 1021-2:2006 (match flame equivalent)
- BS 5852:2006 Clause 11, Ignition Source 5
- FAR/JAR Part 25:App. F part 1 (Vertical Test) / EASA CS.25.853
- IMO Resolution MSC 307(88) (2010 FTP Code: Annex 1: Part 8)
Cleaning & Maintenance
For long-lasting appearance and performance, clean regularly using mild soapy water and a soft brush or microfibre cloth. Avoid harsh chemicals. The antimicrobial properties are built into the vinyl during manufacturing, ensuring continued effectiveness even after frequent cleaning. The material also resists mould and mildew growth, helping prevent odours.
Warranty Information
We’re committed to providing durable, high-quality equipment that meets the needs of clinical and professional environments. That’s why the Fusion Drop End Exam Couch comes with a comprehensive warranty for added peace of mind.
- 5-Year Warranty: Covers all mechanical parts against defects in materials or workmanship from the date of delivery.
- 15-Year Frame Guarantee: For the variable-height, fully welded couch frame only.
- 12-Month Warranty: Applies to some components.
For customers in non-mainland UK and Highlands locations (including Ireland and international orders), the warranty is limited to the supply of replacement parts only. Labour or service costs may be chargeable.
For further information, please refer to the manufacturer's T&Cs.
Optional Extra Details
Leg Supports
Pair of adjustable leg supports with mounting brackets for reliable positioning during procedures.
- Multi-position adjustment
- Secure bracket fixings
- Wipe-clean surfaces
- Supplied as pair with brackets
- Factory-fit accessory - not sold separately
Padded Arm Supports
Pair of arm supports with mounting brackets offers comfortable support during treatments or examinations.
- Secure bracket fixings
- Wipe-clean surfaces
- Supplied as pair with brackets
- Factory-fit accessory - not sold separately
Folding Side Rails
Pair of metal folding side rails to help ensure patients are secure when on the bed. They can be lowered to enable easy mounting & dismounting.
- Securely fitted to the couch frame
- Wipe-clean surface
- Supplied as a pair
- Factory-fit accessory - not sold separately
Phlebotomy Arm
Pair of adjustable arm supports with durable frame and easy-clean holder.
- Strong metal frame
- Easy-clean black arm cradle holder
- Adjustable for patient comfort
- 49cm (H) x 35cm (L) x 12cm (D)
- Factory-fit accessory - not sold separately
Foot Switch
Hands-free foot control for electric couch height adjustment.
- Replaces hand-held remote
- Hands-free height adjustment
- Electric lift models only
- Factory-fit accessory - not sold separately
Gynae Stirrups
Durable stirrups with shaped heel and foot supports for secure positioning in gynaecological procedures.
- Strong metal stirrup arms
- Triangular foot and heel supports
- Clamp with quick height and angle adjustment
- Supplied as a pair
- Factory-fit accessory - not sold separately
Reviews
The Fusion Drop End Multi-Discipline Examination Couch is designed with input from healthcare professionals to deliver a reliable, ergonomic, and versatile treatment platform. Built to support a wide range of clinical procedures, it can be adapted for physiotherapy, gynaecology, phlebotomy, or general examinations. With robust construction, easy-clean surfaces, and a choice of manual or electric adjustments, this couch provides long-lasting performance in demanding healthcare environments.
Key Benefits & Features
- Strong and supportive design with a maximum user weight of 250kg (40 stone).
- Fitted with 50mm retracting braked castors for stability and smooth movement.
- Hoist clearance of 125mm (5 inches) to support safe patient transfer.
- Integrated gussets between couch sections for improved infection control and easy cleaning.
- Includes paper couch roll holder as standard for added convenience.
- Head/back section adjustment: +80º to -20º; foot section adjustment: +20º to -90º.
- 65mm deep contoured upholstery designed for patient comfort and durability.
