Choose the correct option
| Option | What it includes | Selection guidance |
|---|---|---|

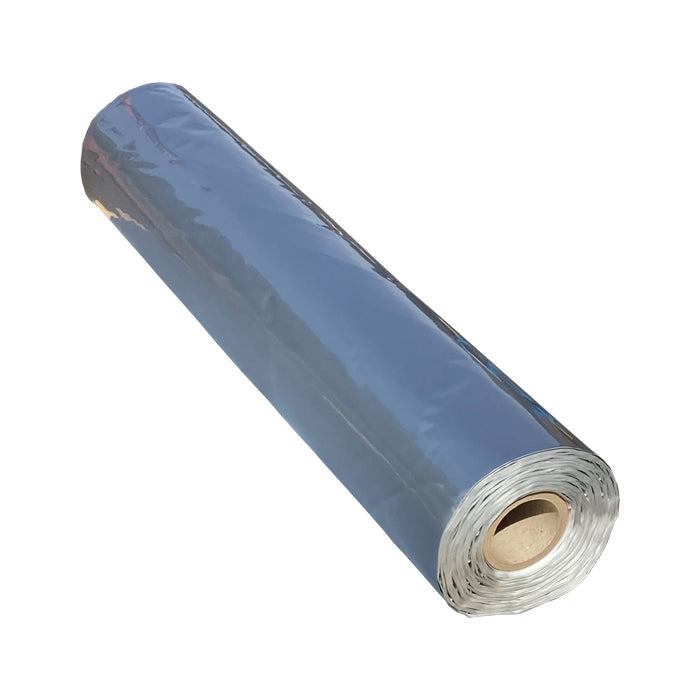

| 25m Foil Roll | One 25m roll of CadSeal foil | Choose this or the 75m roll. A heat sealer is also required if one is not already available. |
| 75m Foil Roll | One 75m roll of CadSeal foil | Intended for higher-volume use. The manufacturer estimates that one roll accommodates approximately 35 bodies. |

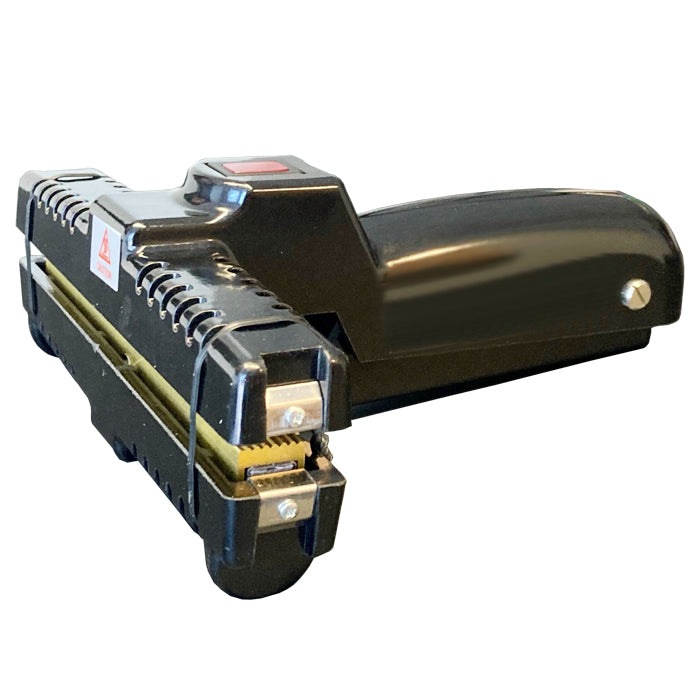

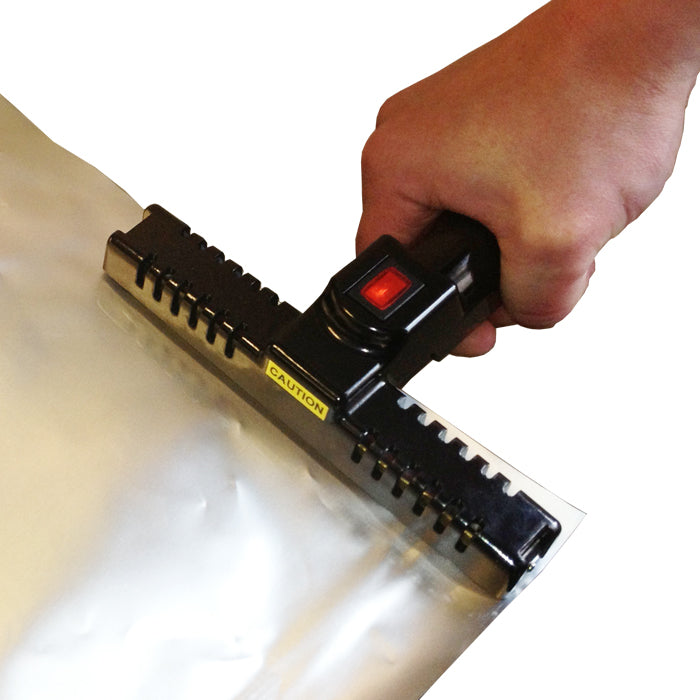

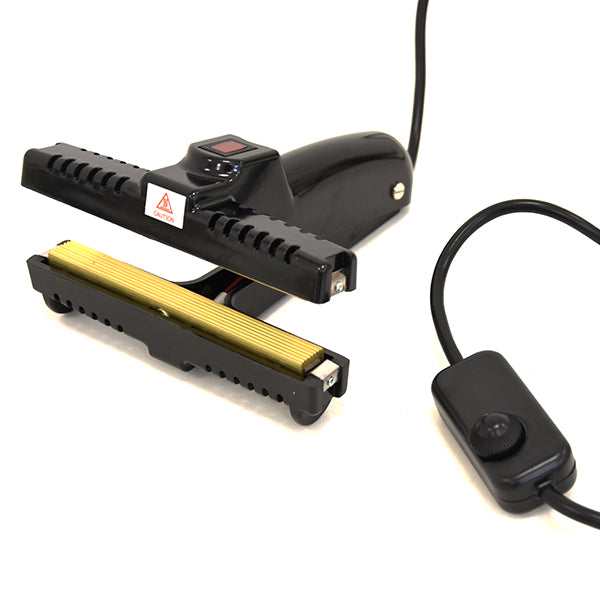

| 150mm Crimped Handheld Heat Sealer | One PCS/150/F handheld heat sealer | Required to heat seal the CadSeal foil. This option contains the heat sealer only. |

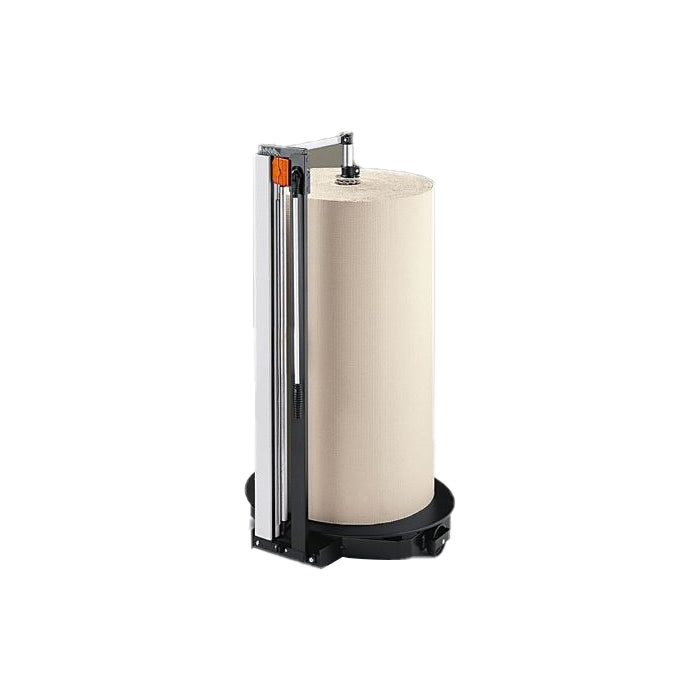

| Roll Dispenser/Cutter | One dispenser and cutting accessory | Optional equipment for supporting and cutting the foil roll, particularly when handling the larger roll. |
CadSeal foil specifications
| Construction | 7-layer material with aluminium foil barrier |
|---|---|
| Thickness | 137 microns |
| Heat-seal strength | >110N |
| Temperature range | -40°C to +80°C |
| Oxygen transmission | <0.006cc/m²/24 hours |
| Water transmission | <0.05g/m²/24 hours |
Handheld heat sealer specifications
| Product code | HEAT SEAL PCS/150/F |
|---|---|
| Type | Crimped handheld heat sealer |
| Maximum sealing length | 150mm |
| Seal depth | 10mm |
| Maximum film thickness | 2 × 250 microns |
| Jaw type | Serrated |
| Temperature control | Adjustable |
| Power | 65W |
| Voltage | 230V ±10% |
| Weight | 0.86kg |
Important usage information
- Operate the heat sealer in accordance with the instructions supplied for the PCS/150/F model.
- Follow the organisation's handling, personal protective equipment and infection-prevention procedures. CadSeal does not replace these controls.
- Before international repatriation, confirm the applicable containment, documentation and packing requirements with the airline, destination country and relevant authorities.
Downloads
Reviews

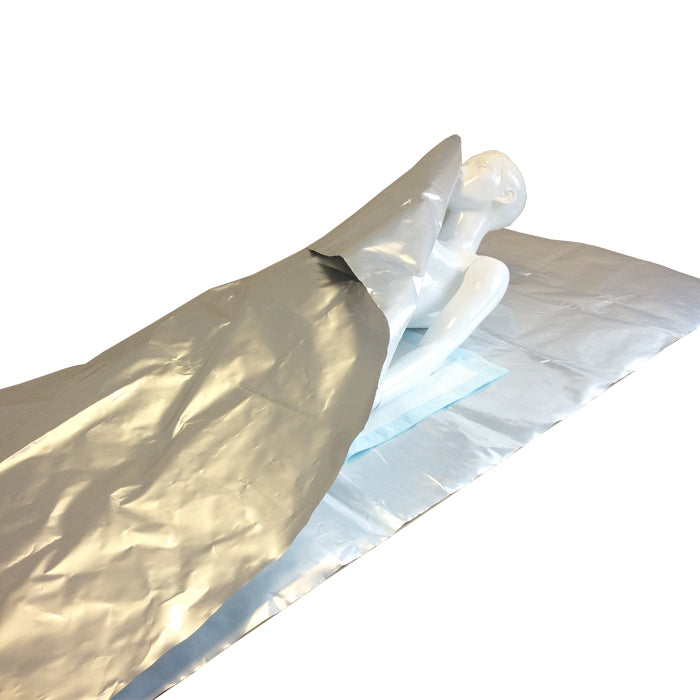

CadSeal Mortuary Repatriation System uses multi-layer aluminium barrier foil to form a hermetically sealed enclosure around the deceased. When correctly heat sealed, the airtight and watertight enclosure helps contain fluids, gases and odours during transport or temporary storage.
For a first-time setup: order either a 25m or 75m foil roll together with the 150mm crimped handheld heat sealer. The roll dispenser/cutter is optional.
Key features and benefits
- Hermetic containment: Heat sealing forms an airtight and watertight enclosure that helps contain fluids, gases and odours.
- Multi-layer construction: The 7-layer material incorporates an aluminium foil barrier and has a thickness of 137 microns.
- Flexible format: The foil can be cut to suit individual requirements and occupies less storage space than a rigid containment system.
- Repatriation applications: Provides a lightweight alternative to zinc-lined containment for applicable journeys, subject to airline and destination requirements.
- Temporary storage: The sealed enclosure can support controlled handling and temporary storage where enhanced containment is required.
- Choice of roll size: Available in 25m and 75m lengths to suit different levels of use.
