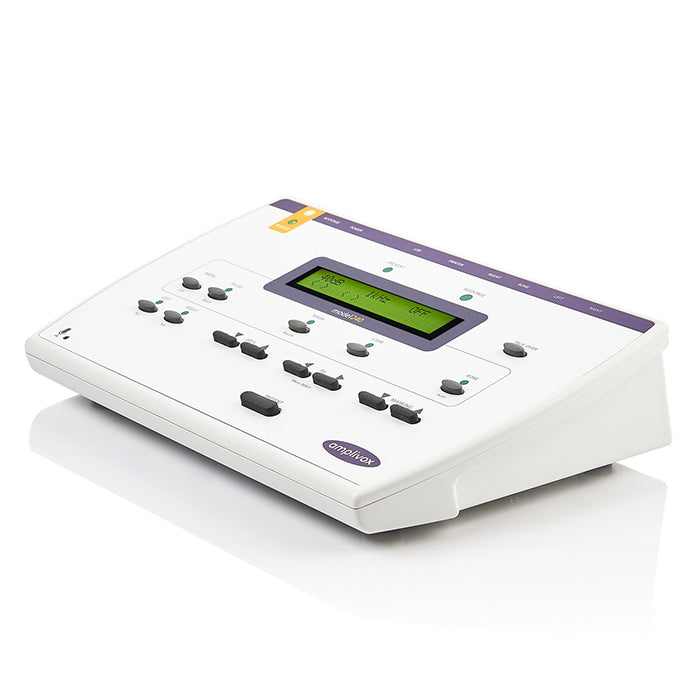

Amplivox 240 Portable Diagnostic Audiometer
Amplivox 240 Portable Diagnostic Audiometer
Product Code: AUDI030
Direct from Supplier Ships direct from the supplier for delivery within 7 working days.
The Amplivox 240 audiometer is a cost-effective, portable diagnostic audiometer, which offers both air and bone conduction audiometry. The Amplivox 240 audiometer features include an automatic test function (AC), narrow band masking, an attenuator range up to 120 dBHL and an integral talkover function.
The Amplivox 240 diagnostic audiometer is lightweight, fully portable and simple to use. Control functions are all laid out in an easy to read manner and functions are simple to use with the integrated digital display. The Amplivox 240 is ideal for occupational health and primary care audiometric requirements. Test results can be displayed and recorded at the end of the test and saved if required using the memory function. Results can also be printed using the optional Amplivox printer, recorded manually using audiogram cards or transferred to a PC installed with Amplivox audibase software.
The Amplivox 240 is supplied with the following equipment:
- Audiometric headset
- Bone conductor headset

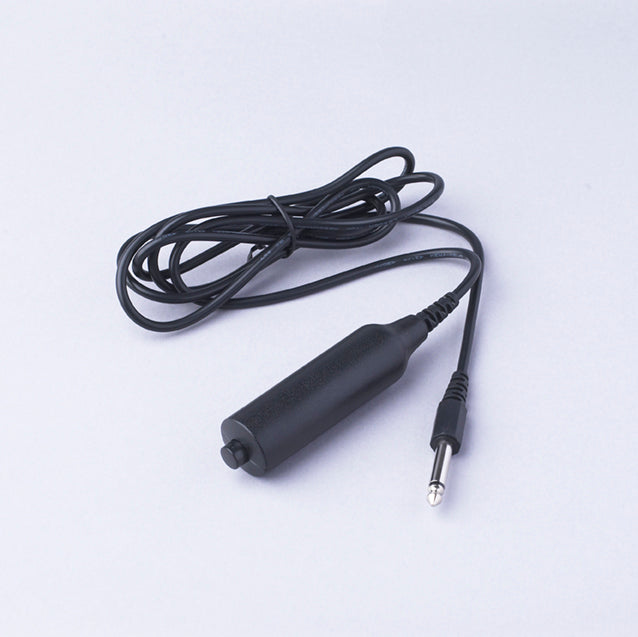

- Patient response switch

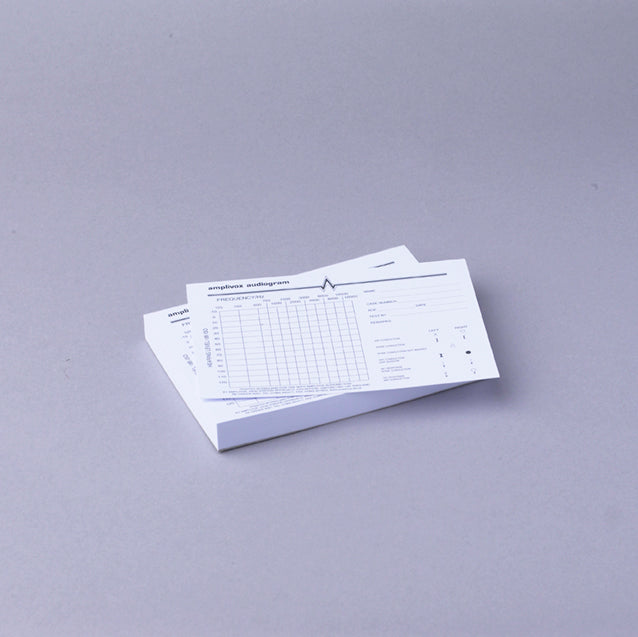

- Audiogram cards (50)
- Operation manual
- Mains adaptor
- Integrated talk over function

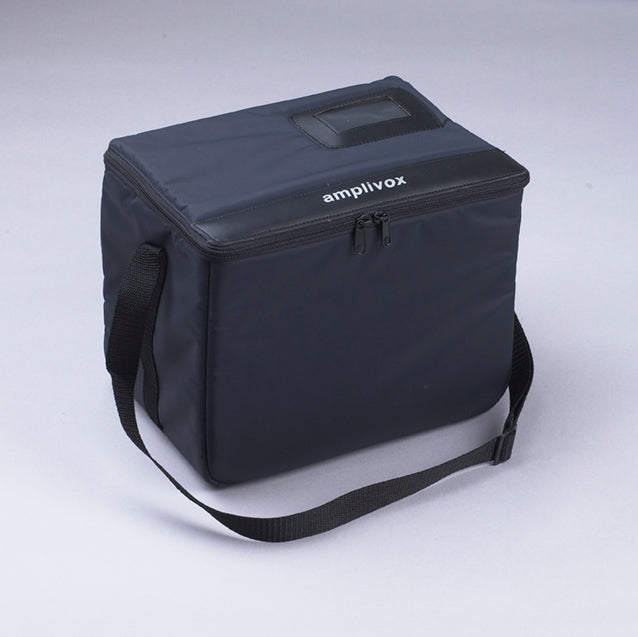

- Custom-designed carrying case
- Standard 2-year warranty
Technical specifications
Output/input data
- Outputs: Left AC, Right AC, Bone (L&R) insert masking
- Frequency range (Hz): AC: 125-8kHz
- BC: 250Hz-8kHz
- Frequency accuracy: <1%
- Output level range (AC): -10dBHL to 120dBHL (max)
- Output level range (BC): -10dBHL to 70dBHL (max)
- Insert masking output: 90dBHL max (250-4kHz)
- Output level accuracy: Within 3dB
- Output level step size: 5dB
- Output transducer options: Standard audiometric headset and/or optional insert earphones
- Tone present: Single, pulsed or warble
- AC test: Manual or automatic mode
- Masking: Narrowband
- Communication: Integral talk forward facility
- NOAH interface: Transfer of AC and BC test results
Physical data
- Display: 2 lines of 24 characters (backlit)
- Power (battery): 4 x 1.5V “C” type batteries
- Power (mains): 100-240V ac 50-60Hz
- Dimensions (mm): 270(l) x 175(d) x 68(h)
- Weight: 735 grams
Standards
The Amplivox 240 conforms to the relevant clauses of the following standards.
- Safety: IEC 60601-1
- EMC: IEC 60601-1-2
- Audiometric: IEC 60645-1
- CE mark: Complies to EU Medical Device Directive
The following optional extended warranty plans are available with this product:
- 3-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
- 5-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
- 3-Year Extended Warranty & Return To Base (RTB) Calibration
- 5-Year Extended Warranty & Return To Base (RTB) Calibration
This item will be delivered direct from the manufacturer. Please allow 7 working days for delivery.
