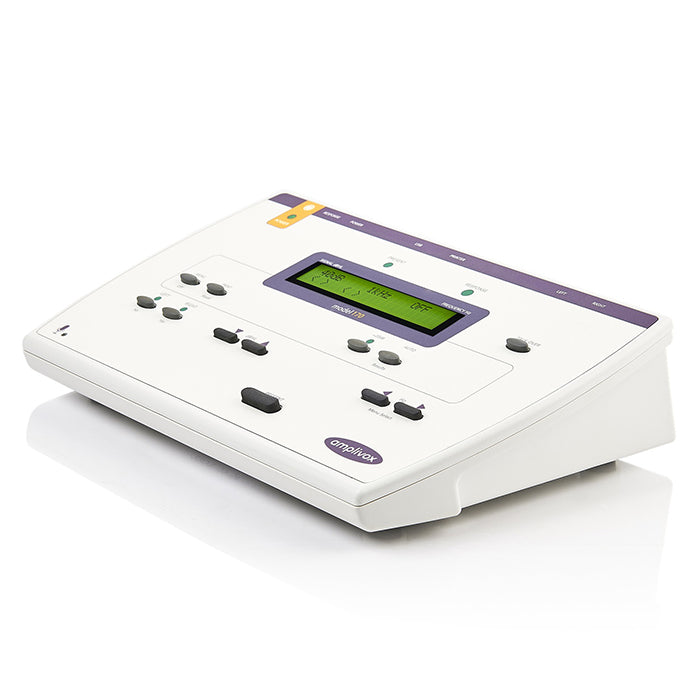

Amplivox 170 Automatic Screening Audiometer

The Amplivox 170 automatic audiometer offers both manual and automatic audiometry functions in one cost effective audiometry unit.

The Amplivox 170 screening audiometer is lightweight, fully portable and simple to use. Control functions are all laid out in an easy to read manner and functions are simple to use with the integrated digital display. The Amplivox 170 is ideal for occupational health and primary care audiometric requirements. Test results can be displayed and recorded at the end of the test and saved if required using the memory function. Results can also be printed using the optional Amplivox printer, recorded manually using audiogram cards or transferred to a PC installed with Amplivox audibase software.

Equipment

The Amplivox 170 is supplied with the following

• Audiometric headset

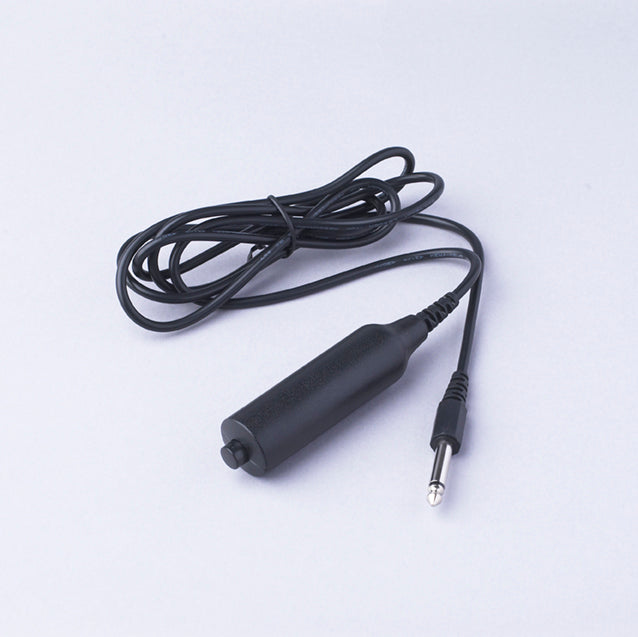

• Patient response switch

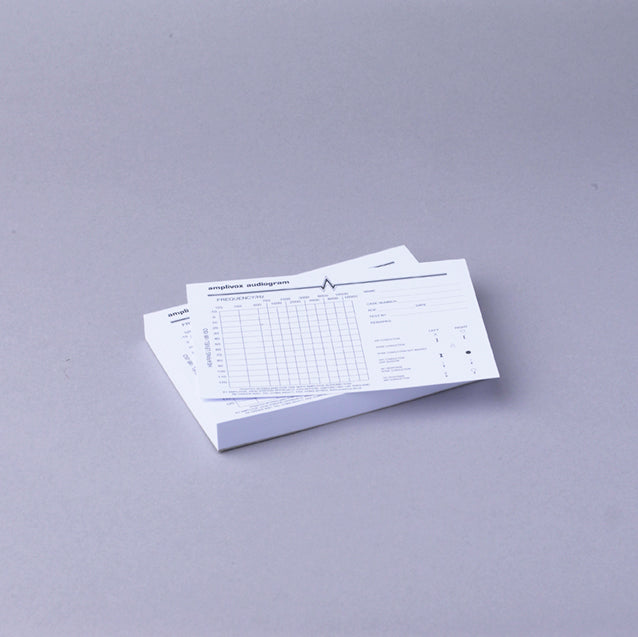

• Audiogram cards (50)
• Operating manual
• Mains power adaptor
• Standard 2-year warranty

Technical specifications

Output/input data

• Outputs: Left AC, Right AC
• Frequency range (Hz): 125, 250*, 500, 750, 1K, 1K5*, 2K, 3K, 4K, 6K, 8K* *may be individually selected for automatic test.
• Frequency accuracy: <1%
• Distortion: <2%
• Output level range (AC): -10dBHL to 100dBHL (max)
• Output level accuracy: Within 3dB
• Output level step size: 5dB
• Test modes: Automatic or Manual
• Internal memory: 12 complete tests
  Designated printer: High speed portable
  thermal printer

Physical data

• Graphic display: 2 lines of 24 characters
• Power (mains): 100-240V ac 50-60Hz
• Dimensions (mm): 270(l) x 175(d) x 68(h)
• Weight: 710 grams

Standards

The Amplivox 170 conforms to the relevant clauses of the
following standards.

• Safety: IEC 60601-1
• EMC: IEC 60601-1-2
• Audiometric: IEC 60645-1
• CE mark: Complies to EU Medical Device Directive

The following optional extended warranty plans are available with this product:

• 3-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 5-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 3-Year Extended Warranty & Return To Base (RTB) Calibration
• 5-Year Extended Warranty & Return To Base (RTB) Calibration

This item will be delivered direct from the manufacturer. Please allow 7 working days for delivery.
