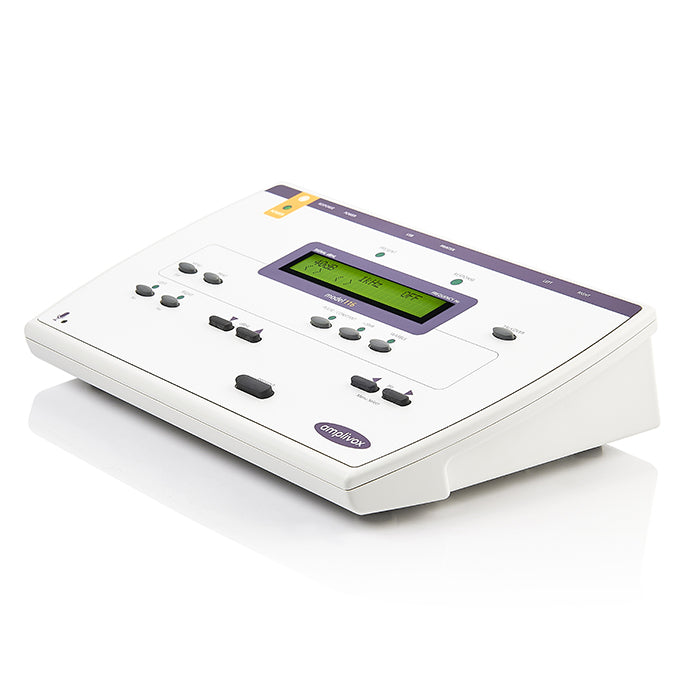

Amplivox 116 Manual Screening Audiometer

The Amplivox 116 manual screening audiometer is an affordable and functional audiometer which is ideally suited to use in primary care, schools and industry.

The 116 audiometer is lightweight, fully portable and simple to use. Control functions are all laid out in an easy to read manner and functions are simple to use with the integrated digital display.

The Amplivox 116 audiometer offers a comprehensive air conduction threshold facility at a very affordable price. The unit features a reduced time test and a threshold retention function which maximises patient concentration. Test results can be displayed and recorded at the end of the test and not between frequencies. Results can also be printed using the optional amplivox printer.

The 116 can also be supplied with the optional battery power function in addition to mains power if required.

The Amplivox 116 screening audiometer is supplied with the following equipment.

• Audiometric headset

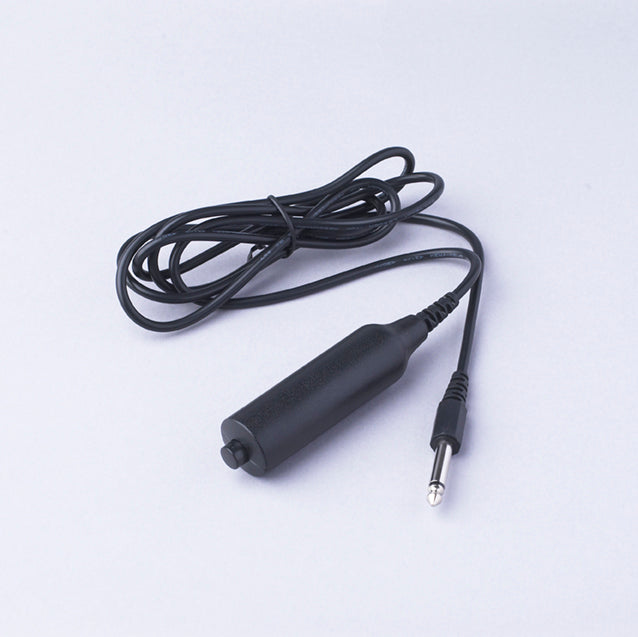

• Patient response switch

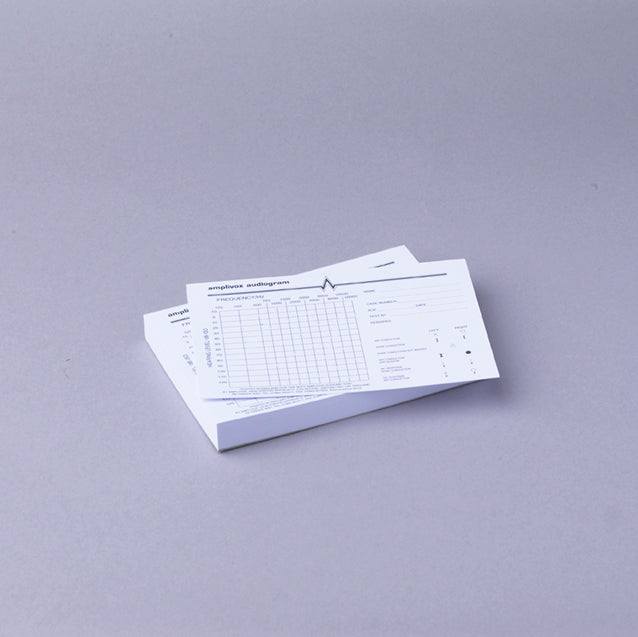

• Audiogram cards (50)
• Operating manual
• Mains power adaptor

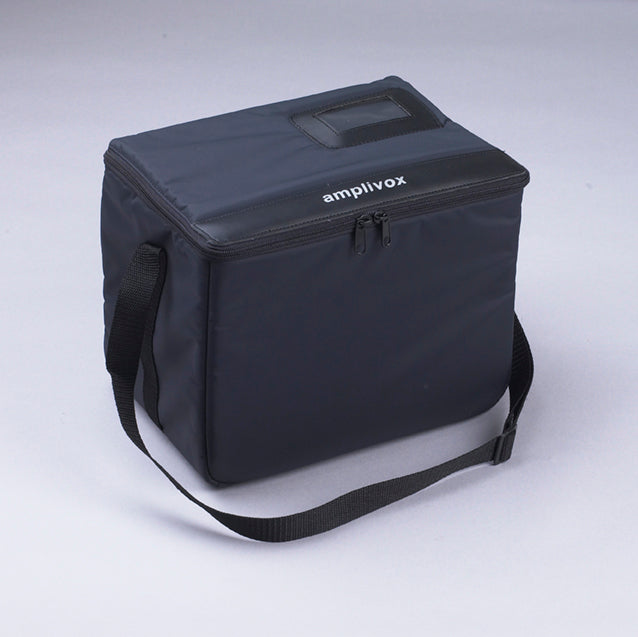

• Carrying case
• Standard 2-year warranty

Technical specifications

Output/input data

• Outputs: Left AC, Right AC
• Frequency range (Hz): 125, 250, 500, 750, 1K, 1K5, 2K,4K, 6K, 8K
• Frequency accuracy: <1%
• Distortion: <2%
• Output level range (AC): -10dBHL to 100dBHL (max)
• Output level accuracy: Within 3dB
• Output level step size: 5dB
• Tone present: Single, pulsed, warble or continuous

Physical data

• Graphic display: 2 lines of 24 characters (backlit)
• Power (battery): 4 x ‘C’ cell batteries
• Power (mains): 240V ac 50/60 Hz
• Dimensions (mm): 252(l) x 170(d) x 65(h)
• Weight: 720 grams

Standards

The Amplivox 116 conforms to the relevant clauses of the following standards.

• Safety: EN60601-1
• EMC: EN60601-1-2
• Audiometric: EN60645
• CE mark: Complies to EU Medical Device Directive

• 3-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 5-Year Extended Warranty & On-Site Calibration (UK Mainland Only)
• 3-Year Extended Warranty & Return To Base (RTB) Calibration
• 5-Year Extended Warranty & Return To Base (RTB) Calibration

This item will be delivered direct from the manufacturer. Please allow 7 working days for delivery.
